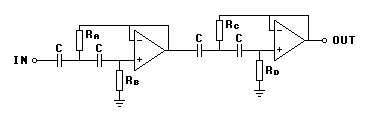

Active Filter: Linkwitz
(4st order, 24 dB/octave, Highpass)
C=4.7n-10nF
Ra=Rc=1/(2*sqr(2)*pi*Fc*C)
Rb=Rd=2Ra
Units: Rx [Ohm], C [F], Fc [Hz]
Contributor:
Joakim Ögren
Source: ?
